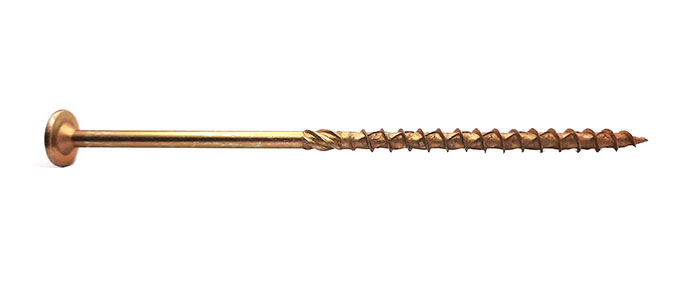

大扁頭螺旋齒尖尾螺絲

大扁頭應用層面廣泛如:建築、結構、家具..等
https://www.fongprean.com/web/image/product.template/18/image_1920?unique=e1d51fa

Material : Carbon steelStainless steel

Application : WoodChipboardMDF

Size : M5 - M10、#12 - 3/8

Length : 40mm - 400mm、1 1/2" - 15 3/4"

我們可提供您客製化服務(包含尺寸、頭型、孔型、尾型、表面處理、包裝),並解決您的問題。

  • 表面處理
  • 孔型

此組合不存在。

尺寸: M5 - M10、#12 - 3/8

產品敘述

   Features

  • Modified truss head features high pull-out resistance and larger area contact cause less damage for materials.
  • Patent Twister thread with high holding power is supposed to strengthen material connection and enhance construction safety.
  • Milling the wood and larger hole to lower splitting force by special U thread design.
  • The bending angel stands min. 45 degree offer flexibility and impressive deformation resistance to against temperature or environment variation.


規格說明

大扁頭木螺絲之結構應用示意圖

The structural timber wood screw, characterized by its Twister thread design, demonstrates robust and reliable performance in timber connections, providing a secure and durable solution for construction applications.

優點

 大扁頭結構木螺絲之應用優勢?

 1. 經典大扁頭: 高結合力, 保證結構結合之安全性。

 2. 碳鋼 SAE 10B21: 彎曲度45度具備良好抗變形力。

 3. Hex-Star Recess: Preventing bit cam-out while drilling and providing the best safety-consideration.
